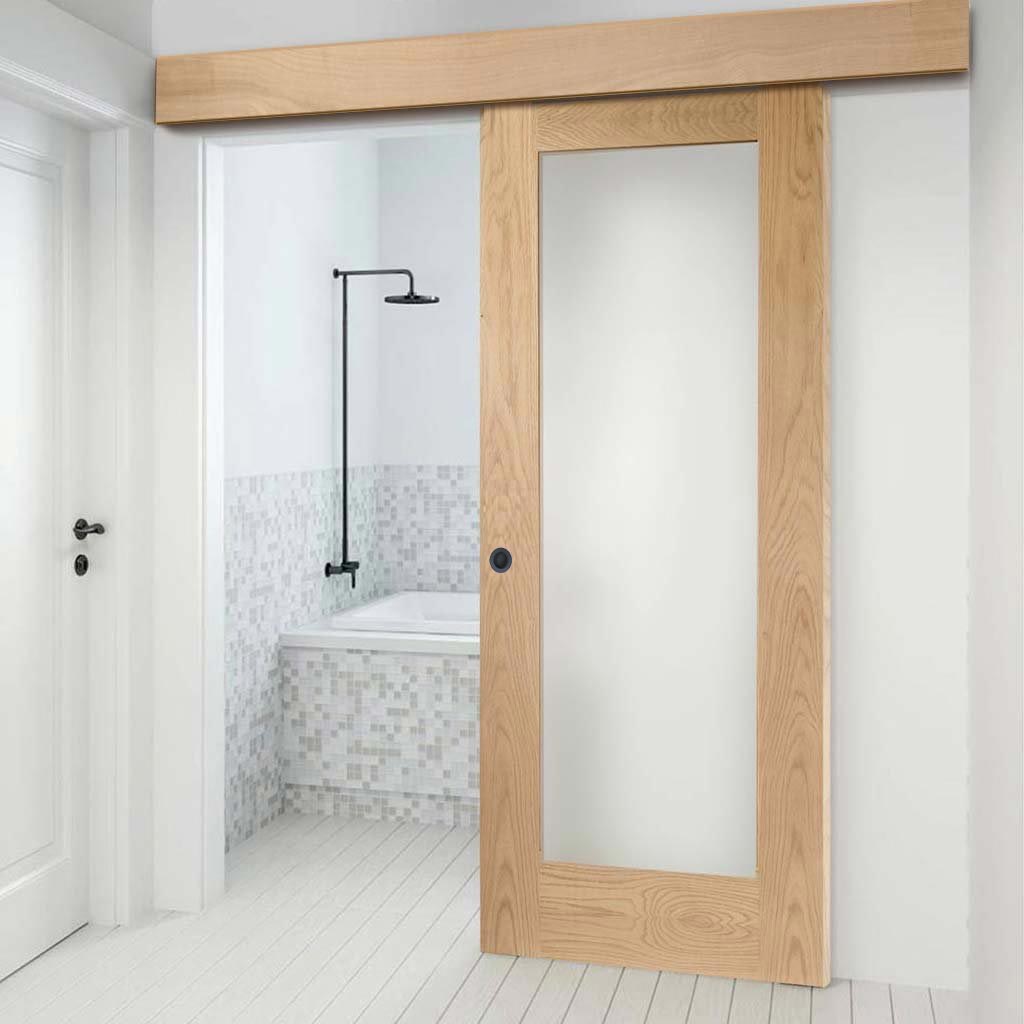

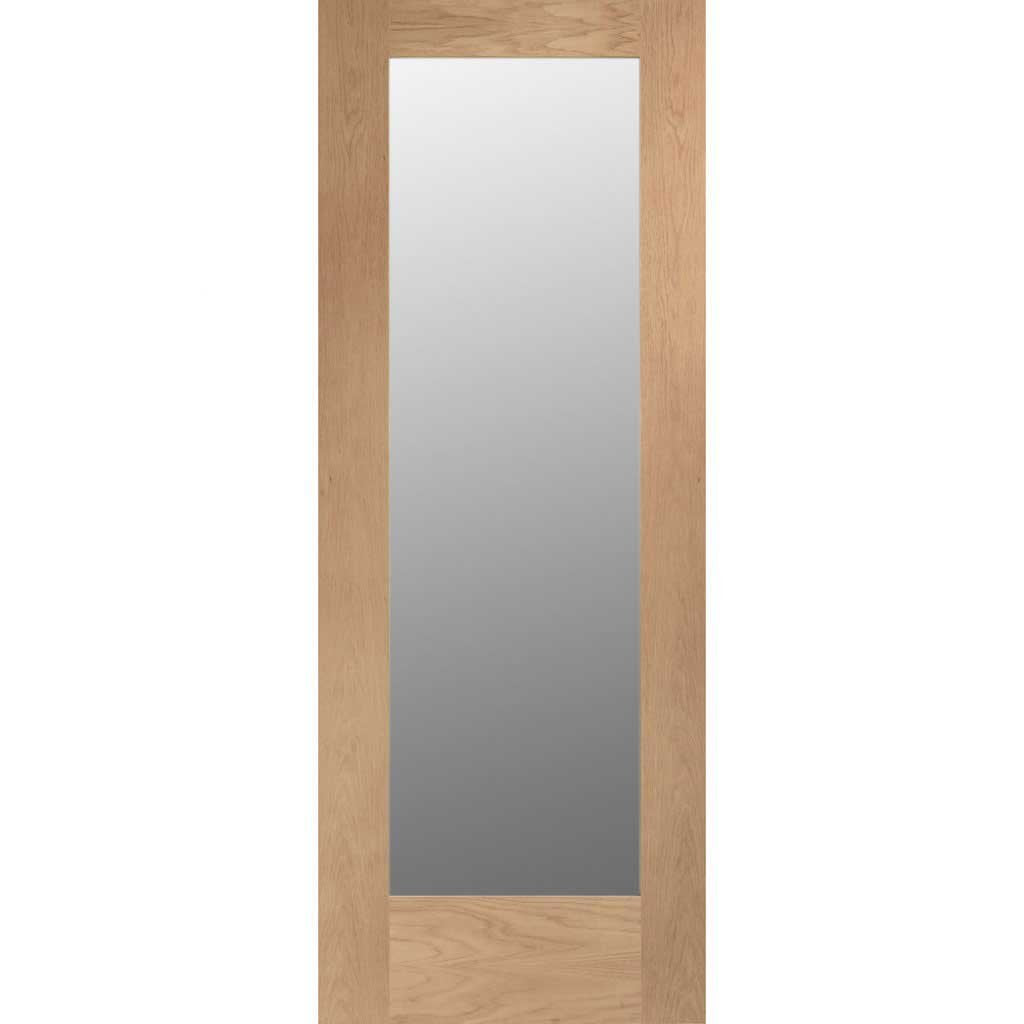

Single Sliding Door & Wall Track - Pattern 10 Oak Shaker 1 Pane Door - Obscure Glass - Prefinished
The prices shown are the door and track combined cost, we deliver for free to most UK mainland postcodes, delivery may be from 2 or more suppliers.
Important: All these items are supplied in kit form, not assembled. Please note all Thruframe door products are cut to size upon receipt and cannot be cancelled afterwards, they are classed as a bespoke item created and manufactured by DirectDoors.com. Read more
Variant
1981x686mm Door - For Openings 1970mm High x 666mm Wide (PFGOSHAP1027-THRSUR-1)
£471.02 RRP: £543.51
1981x762mm Door - For Openings 1970mm High x 742mm Wide (PFGOSHAP1030-THRSUR-1)
£485.88 RRP: £558.37
1981x838mm Door - For Openings 1970mm High x 818mm Wide (PFGOSHAP1033-THRSUR-1)
£485.88 RRP: £558.37
Add Options
Sliding Door Pelmet (optional)

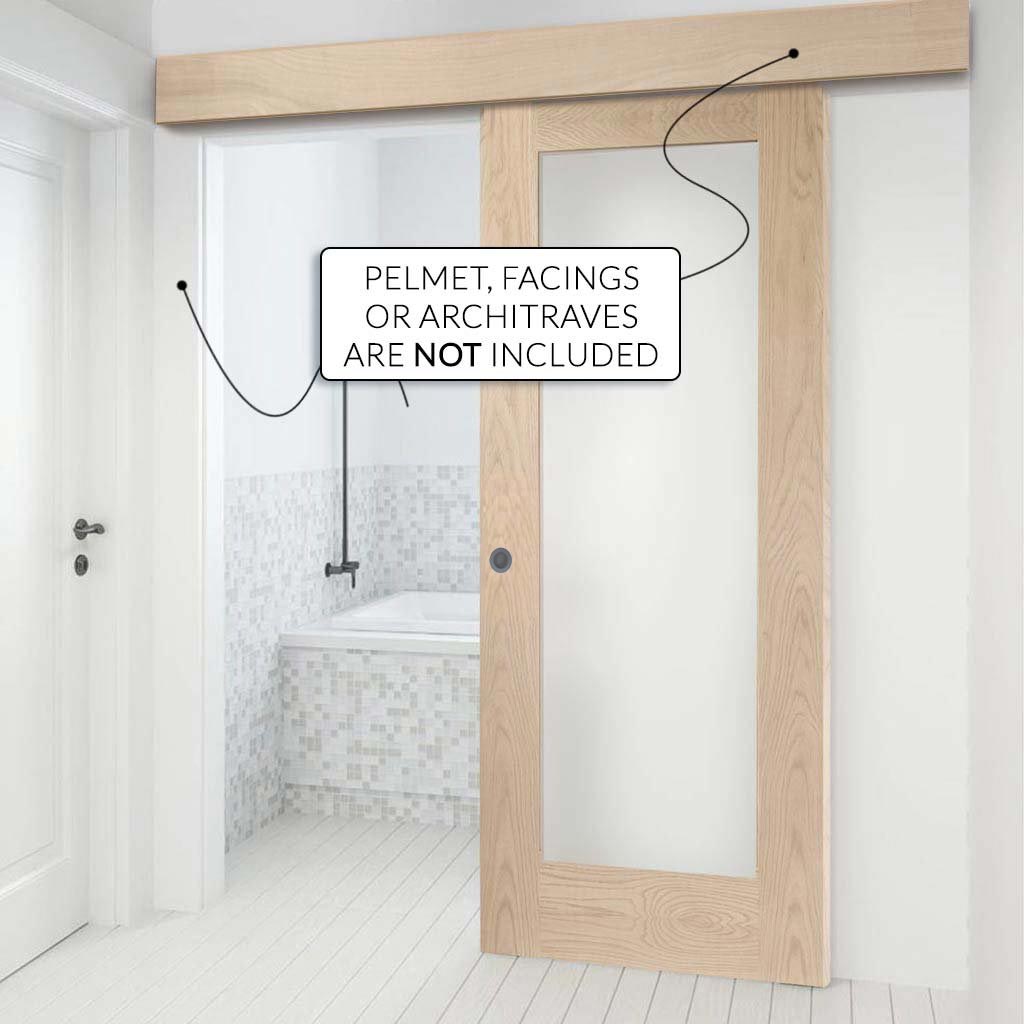

Our Sliding door pelmets are designed to fit single and double sliding top mounted door tracks but not the permanently visible Antique Black Top Mounted, Face Mounted Strap, Modern / Vetroslide Stainless Steel type tracks or Full Pane Glass only type sliding doors.
Care must be taken when ordering as they are designed to be fitted to homes with architraves/facings surrounding the door frame, please ask our advice if there are no architraves or facings before purchasing.
A router will be required for door(s) installation.
Please click here to find our manufacturers care and decoration advice for this door.
Product Advice:
- The supplied track will have a length equal to 2x the door width plus 100mm.
- Opening sizes; the best opening size to aim for is 10mm less in height and 20mm in width than your chosen door size so the door "covers" the full opening and more, we have listed these in the door size options but you can choose to fit them to a smaller opening width / height.
- The type of architrave used or existing can impact on visible clearances.
- Prices show the door and track combined cost, all prices are inclusive of vat and UK wide delivery which may be from 2 or more suppliers.
- Tracks are aluminium and have hanging brackets for a secure wall fixing, the top wall plate, pelmet top and pelmet facia are available at an extra cost as you go through the buying process, you will require these material sections at some point in the installation process to complete the fitting. Please see pelmet option for material and installation details.
- There is a maximum 2051mm floor to top of track height requirement for all variations (if using a 1981mm high door) which includes some track adjustable tolerances for discrepancies to wall and floor levels, please note that the surface fix brackets are over and above these height requirements.
- Door will require a groove to be routered in the bottom of it to suit the floor guide, no bottom track required in order to allow for a clear threshold so there is no trip hazard encountered with this track.
- Be very careful when setting any handle position and the track "stop" to prevent hand injuries.
- All doors are 35mm thick and have a solid or semi solid core covered with a quality timber veneer or surface material for painted and white versions.
- See our full range of handles and fittings here.
Note: All these items are supplied in kit form, not assembled. Please note all Thruframe door products are cut to size upon receipt of order and cannot be cancelled afterwards, they are classed as a bespoke item created and manufactured by DirectDoors.com.
| Price | Includes track, guides, track stops, soft close mechanism, main screws/fixings. We can supply the extra top wall plate and track concealing pelmet materials but these are an extra cost, see "Fittings" below. |
| Sliding Track | The track is not supplied pre-drilled. |
| Supplier Delivery Timescale | See delivery icon at the top of the product page. |
| Dimensions | Please note that any internal dimensions for panels, lining or glass may vary depending on the door width you require. |
| Door Thickness | 35mm |
| Guarantee | 12 months |
| Important | All these items are supplied in kit form, not assembled. Please note all Thruframe door products are cut to size upon receipt and cannot be cancelled afterwards, they are classed as a bespoke item created and manufactured by DIrectDoors.com. |
| Suggested Minimum Skill Level | Advanced DIY & Specialist Joinery Tools Required. |
| Adjustment | Doors will require a routered groove to be created in the bottom of the door to accommodate the door channel. |
