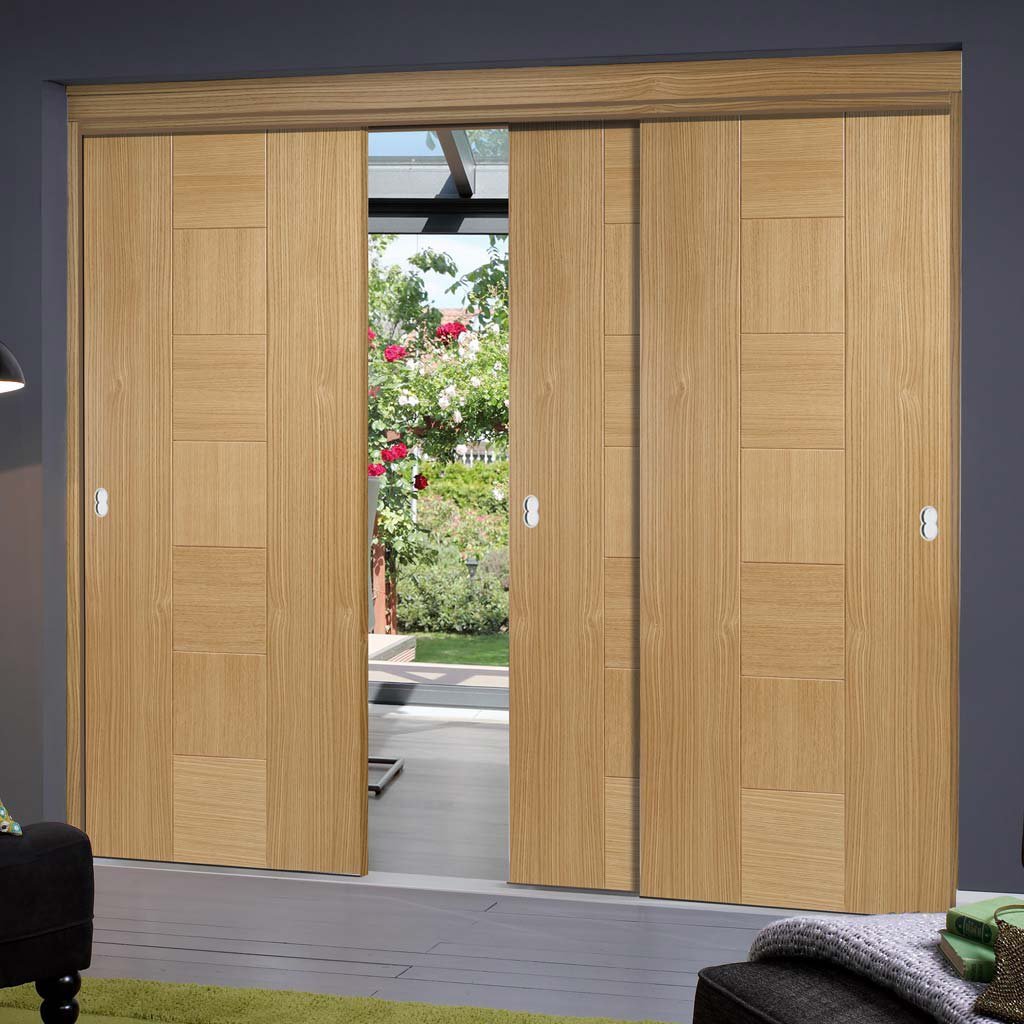

Bespoke Pass-Easi Three Sliding Doors and Frame Kit

Configuration

3 Door

Door Quantity

3

Included Items

• 3x BMade to Order Door
• 1x Track & Track Fixing (excluding wall fixing)
• 3x Soft Closer
• 1x Frame (frame items are supplied in kit form without fixings, not assembled)
• 1x Lintol Plate

Architraves & Handles are not included.

Technical Specs

A router will be required for door(s) installation.

Configurations & Advice:

• Tracks length: Track will be supplied to suit each configuration.

Any mention of pre-finishing is to the door, the frame is supplied unfinished, all fittings such as track, track guides, guide channel, soft close anti-slam components, door track stops as well as the MDF frame components are all supplied. Sizes have allowed for a20mm door overlap.

• No wall fixings, MDF frame screws, fixings or your choice of handles are included.
• All Doors can open left or right but please refer to the diagrams and PDF for more clarity. You simply decide when you install them and discard the track door stops that can be used to keep a door or doors in the fixed position should you so wish.
• Frame linings are 133mm broad and 30mm thick and once again have an MDF solid core construction, kits are supplied with two lintel pelmet to cover the track face and the space between the top of the door and the underside of the track.
• All sliding doors can be trimmed but remember you will also need to cut the frame to suit the reduced doors, this will not be difficult, no handles supplied, please buy the handle you require separately.

This made to measure option is now available for these doors;

Oak unfinished, Oak prefinished, Walnut prefinished, White primed and Prefinished White door ranges.

The process is simple and as follows;

• In some circumstances we may produce a CAD drawing for sign off but this is only supplied if we feel we need to clarify some internal proportions of your door, our suppliers technical team is on hand to produce a detailed CAD drawing outlining your specifications and requirements but on most occasions your involvement in this is not required.
• Your bespoke doors sare manufactured using the CAD drawing as a guide will build your doors to specification, using rigorous quality control to make sure every inch of your doors is made to perfection.
• Your doors are delivered to you using our own fleet of wagons or a third party courier, we're able to deliver without any extra charges anywhere on the UK mainland.
• All doors are 35mm thick and have a solid or semi solid core covered with a quality timber veneer or surface material for painted and white versions.

Note: All these items are supplied in kit form, not assembled. Please note all Thruframe door products are cut to size upon receipt of order and cannot be cancelled afterwards, they are classed as a bespoke item created and manufactured by DirectDoors.com.

Please note that this purchase cannot be cancelled or returned after placing you order. Although there is a long lead time, the long schedule is due to shipment & customs timescales rather than the door manufacturing process.

Any multiple door product, EG; door pairs, sliding double doors, folding doors or double pocket doors are individual doors put together as a product visual, please note we cannot guarantee that the veneers and colour will be an exact match but every care will be taken to provide you with the closest match possible.

Assembly Tip: We all know veneers can vary in colour and grain. As soon as you're ready to begin we suggest standing your doors against a wall - look at the colour/grain and turn any or all doors 180 degrees to get the best match so that your completed installation is as good as it can be. Grain variation is natural - should you require "book marked" grain you would require the doors to be manufactured. Small variations in design features is not uncommon.

Additional Information

Adjustment: Doors will require a routered channel to be created in the bottom of the door to accommodate the track guide.

Important: Do not exert any pressure on the door when closing it. Allow the soft close mechanism to function to avoid damaging the system. All these items are supplied in kit form, not assembled. Please note all Thruframe door products are cut to size upon receipt of order and cannot be cancelled afterwards, they are classed as a bespoke item created and manufactured by DirectDoors.com.

Dimensions: Please note that any internal dimensions for panels, lining or glass may vary depending on the door width you require.
