Pocket Door Kit for Double Doors - Ermetika Evokit

Ermetika Evokit Pocket System Cassette for Double Doors
Ermetika Evokit Pocket System Cassette for Double Doors Ermetika Evokit Pocket System Cassette for Double Doors Ermetika Evokit Pocket System Cassette for Double Doors

In Stock

3-5 working Days

Self Assembly 3-4 hours

Pocket cassette system only, this includes a soft closer and under door profile but it does not include any doors. Please note this pocket door kit is not suitable for hollow core doors.

We deliver for a small charge anywhere Mainland UK.

This cavity door system is the perfect solution for all DIY lovers: with few simple steps Evokit allows you to insert a door into the wall cavity. Read more

Evokit Double (1981X610) (EVOKIT610-PS2)

£957.82

Evokit Double (1981X686) (EVOKIT686-PS2)

£957.82

Evokit Double (1981X762) (EVOKIT762-PS2)

£957.82

Evokit Double (1981X838) (EVOKIT838-PS2)

£957.82

Evokit Double ( 2040X626) (EVOKIT626-PS2)

£957.82

Evokit Double (2040X726) (EVOKIT726-PS2)

£957.82

Evokit Double (2040X826) (EVOKIT826-PS2)

£957.82

Evokit Double (2040X926) (EVOKIT926-PS2)

£983.59

£0.00
i

Note:

Please choose either 100mm or 125mm Frame Jamb Width. If choosing 125mm then you must rotate the bracket 90 degrees to increase the thickness of the metal pocket cassette to suit at point of installation.

Add Options
or
Choose productChoose options Choose requiredChoose optionsAdd To Basket Adding... Added To Basket Error

Add Options

Failed to load, please try again

Flush Pull Handle Pack (optional)

A range of flush pull handles perfect to match your sliding, folding or pocket doors.

Failed to load, please try again

+ £0.00

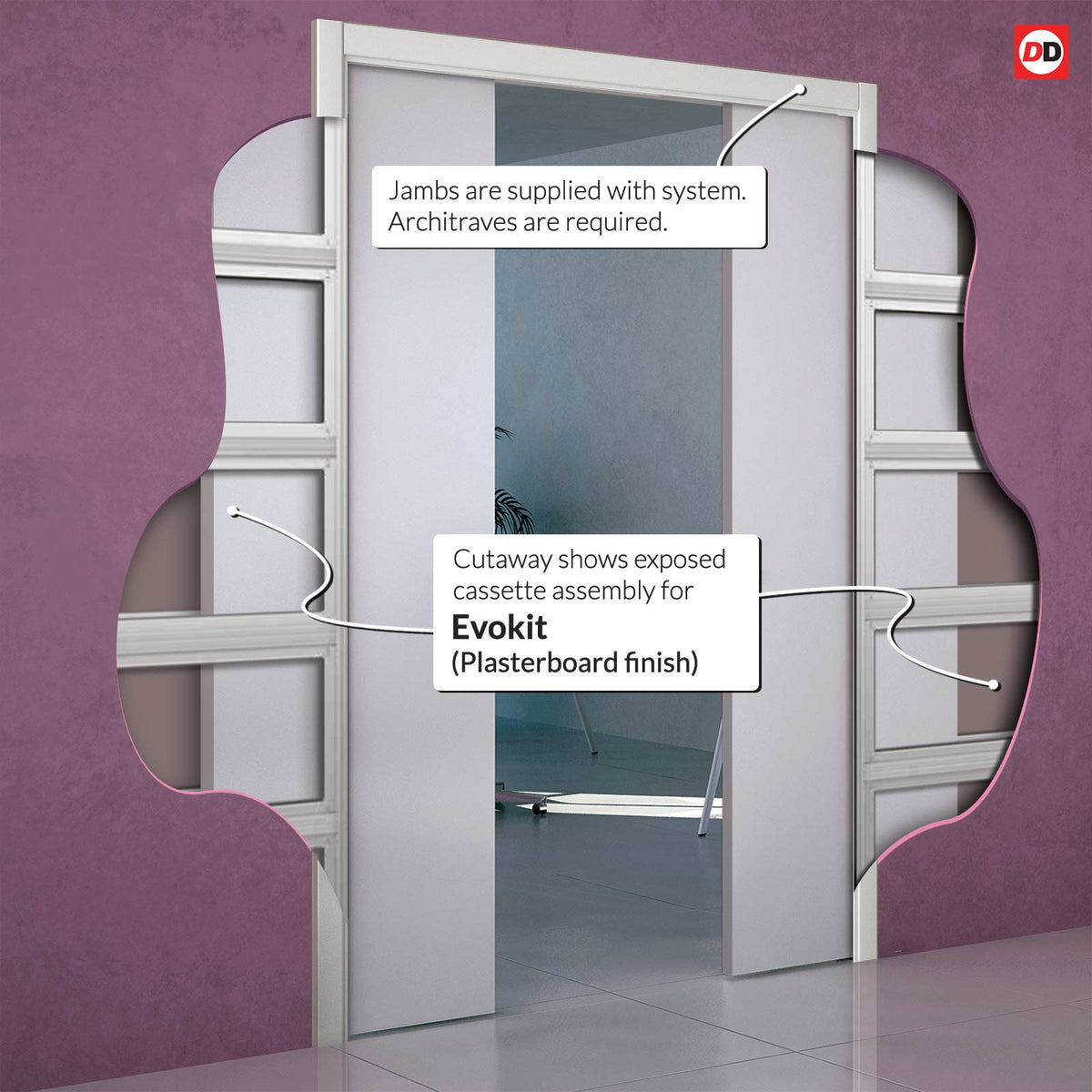

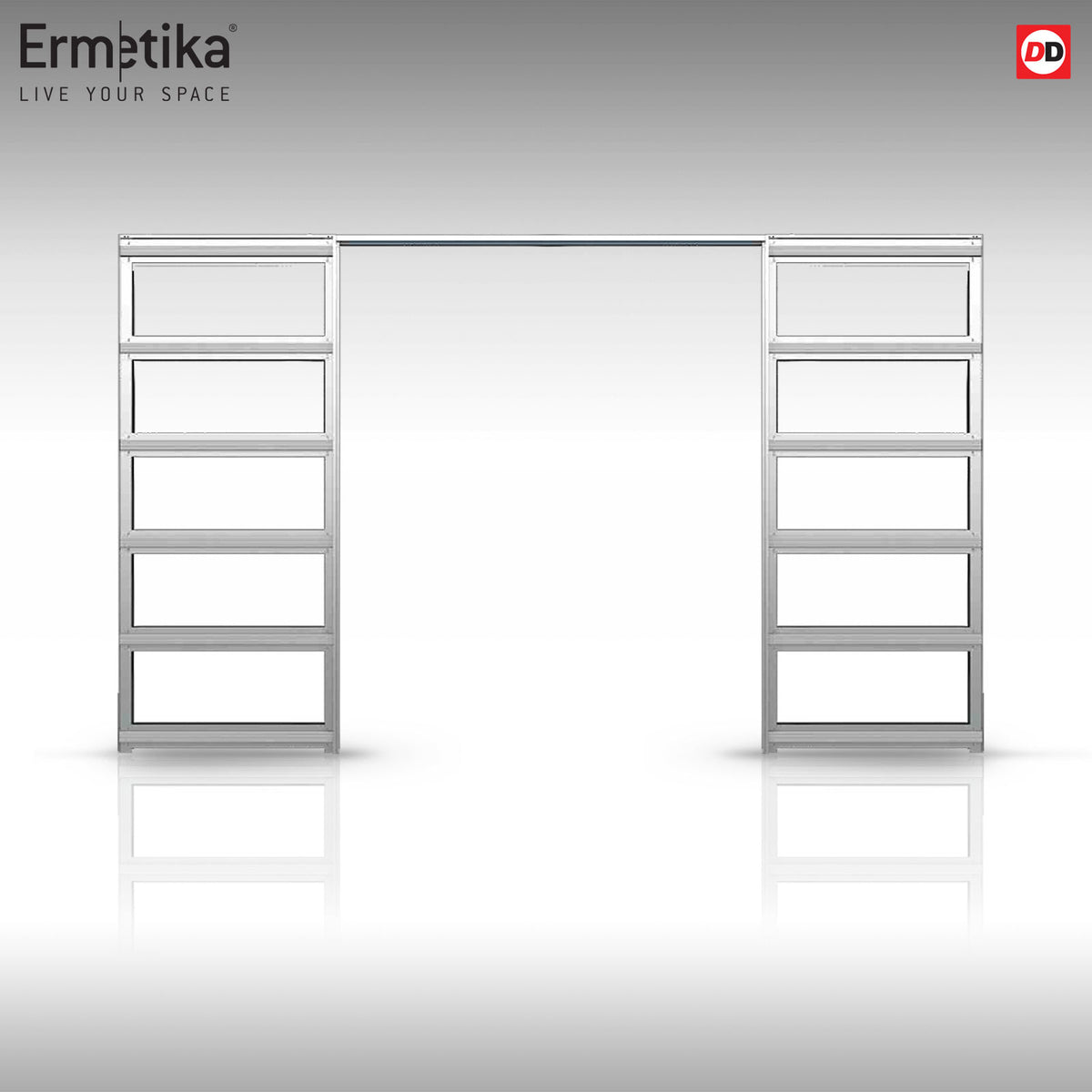

The structure is composed of a two metal frames and joining brackets, each frame contains of: 6 horizontal strong bars 0.7mm thick on each side and a rail that can bear up to 100kg. The horizontal profiles and the vertical ones are 1.2mm thick.

You can set up Evokit without any screws.

Dimensions & Sizes are listed below:

Overall Dimension Passage Size Door Size (imperial) Door Size (metric)
2060mm x 2490mm 1970mm x 1180mm 1981mm x 610mm 24" x 78"
2060mm x 2830mm 1970mm x 1320mm 1981mm x 686mm 27" x 78"
2060mm x 3190mm 1970mm x 1480mm 1981mm x 762mm 30" x 78"
2060mm x 3330mm 1970mm x 1620mm 1981mm x 838mm 33" x 78"
2120mm x 2510mm 2030mm x 1200mm 2040mm x 626mm 80 1⁄4" x 24 5⁄8"
2120mm x 2910mm 2030mm x 1400mm 2040mm x 726mm 80 1⁄4" x 28 5⁄8"
2120mm x 3310mm 2030mm x 1600mm 2040mm x 826mm 80 1⁄4" x 32 5⁄8"
2120mm x 3710mm 2030mm x 1800mm 2040mm x 926mm 80 1⁄4" x 36 5⁄8"

Suggested Minimum Skill Level Advanced DIY & Specialist Joinery Tools Required.
Delivery See the delivery icon on top of the product page.

Cassette Dimensions

Fitting Instructions

Technical Specifications
