All precut, end mitred and pre-drilled for assembly with assembly screws and caps supplied but drilling for wall fixing has to be done by you to suit your home or project.

Important: All Thruframe products are cut to size upon receipt of order and cannot be cancelled afterwards, they are classed as a bespoke item created and manufactured by DirectDoors.com to suit your exact door dimensions.

Note: Our Sliding door pelmets are designed to fit single and double sliding top mounted door tracks but not permanently visible Antique black, face mounted strap, modern/Vetroslide stainless steel type tracks or full pane glass only type doors.

Suitable for our Thruslide surface fit single sliding door but some existing architraves in your home may not be compatible with these materials - they are not suitable for recessed or pocket sliding doors.

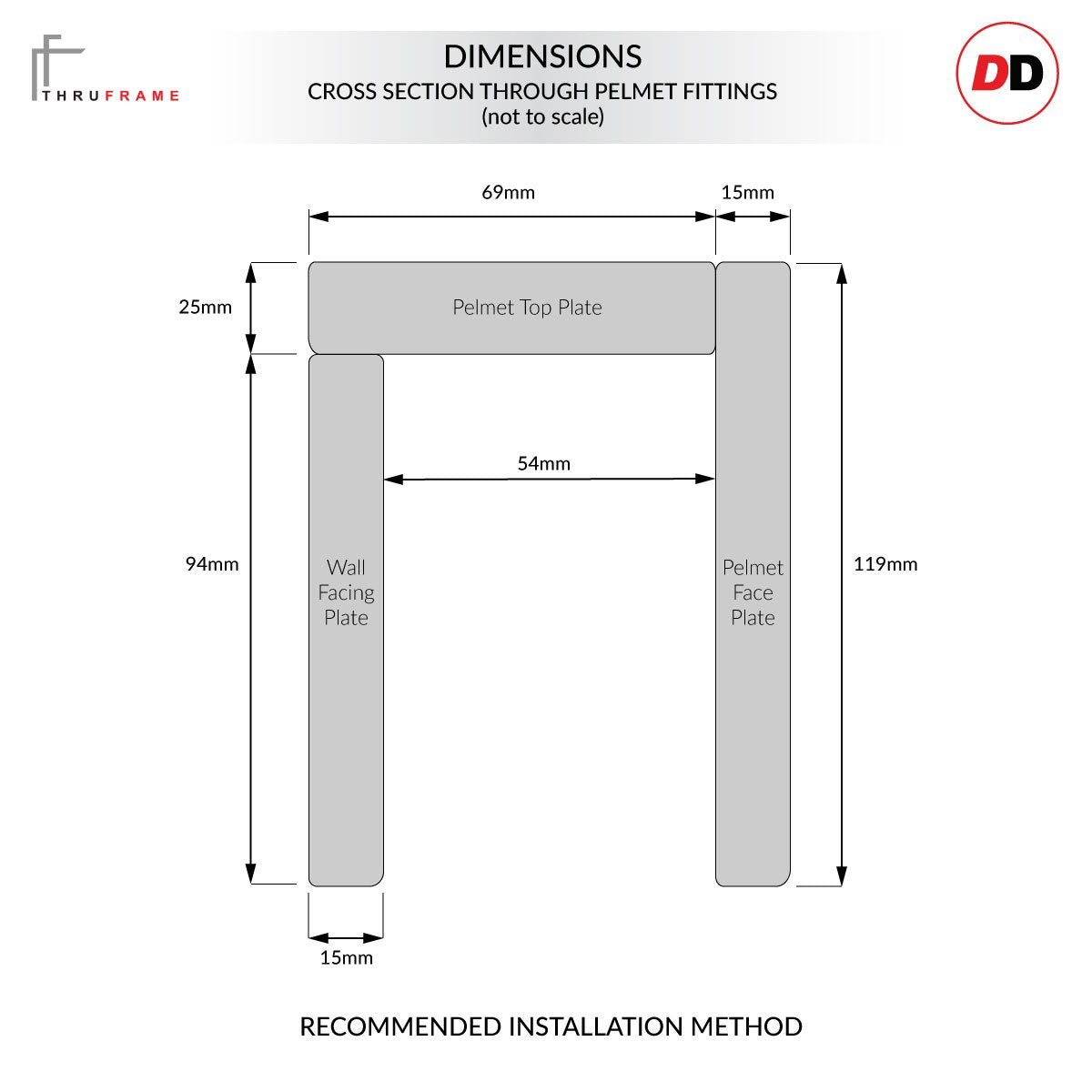

• Dimensions, 94x15mm wall facing lintol plate, 69x25mm pelmet top plate and 119x15mm pelmet face plate.
• Supplied as a kit cut to a chosen sliding door size.

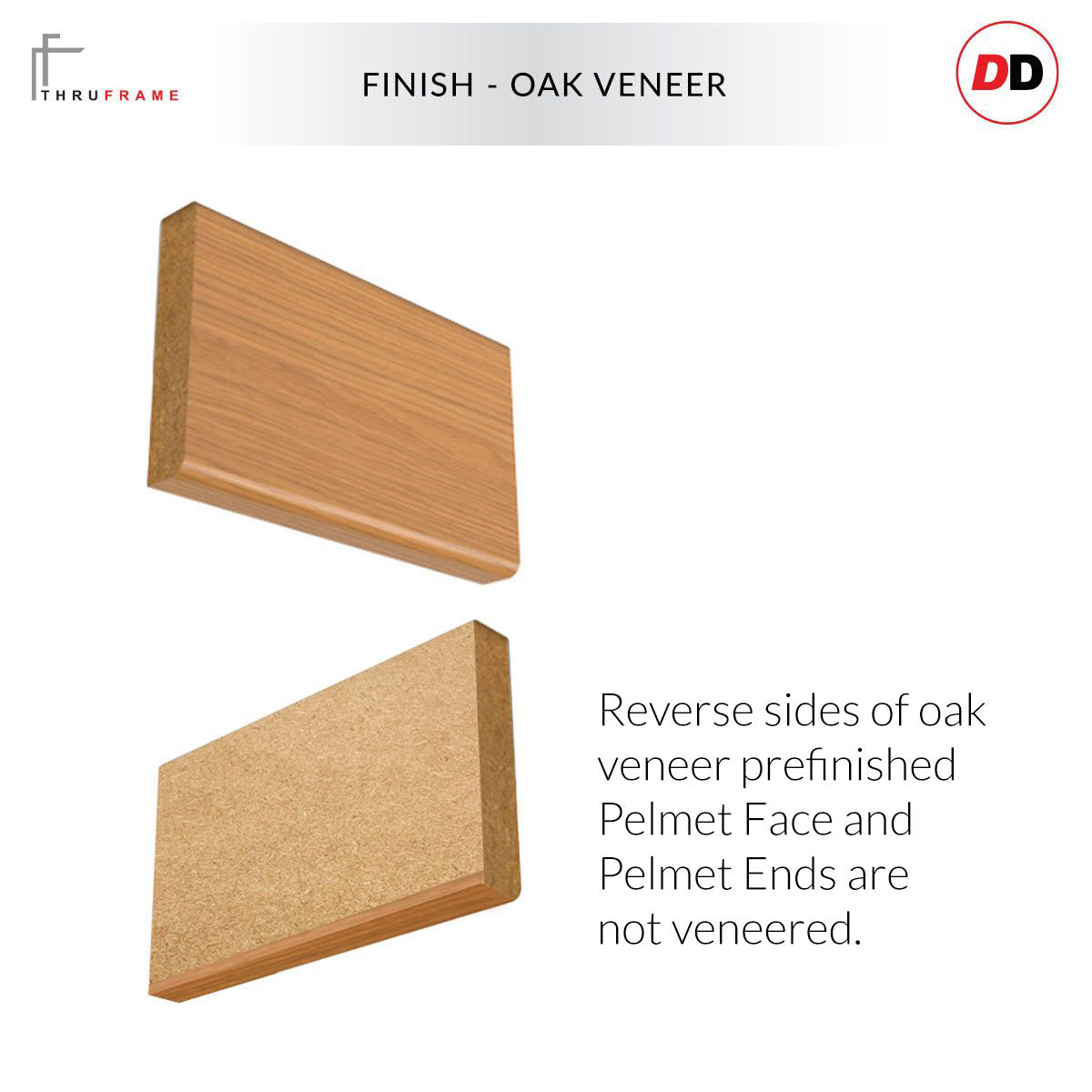

• Oak veneer MDF, pelmet facia and end plates are veneered on the main face but not on the reverse side.
• Solid core construction.

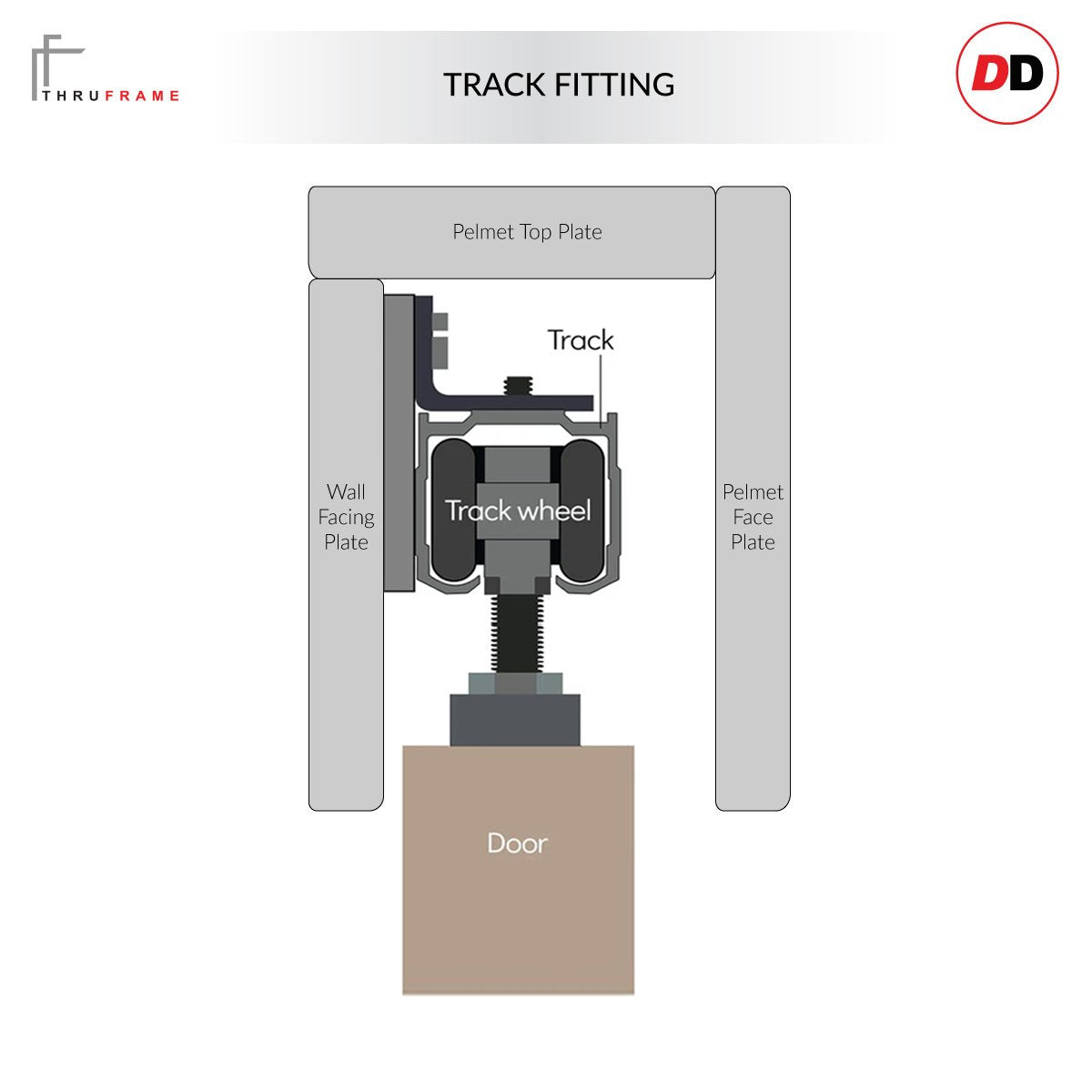

There is only one option with regards to fitting the pelmet face plate in relation to the pelmet top plate - see our recommended installation diagrams.

Choose carefully, these materials are cut to order and cannot be returned.

Each pack is sufficient for one single surface door, see the table below for the exact sizes:

We also have the bespoke option when required for those larger made to measure doors.
