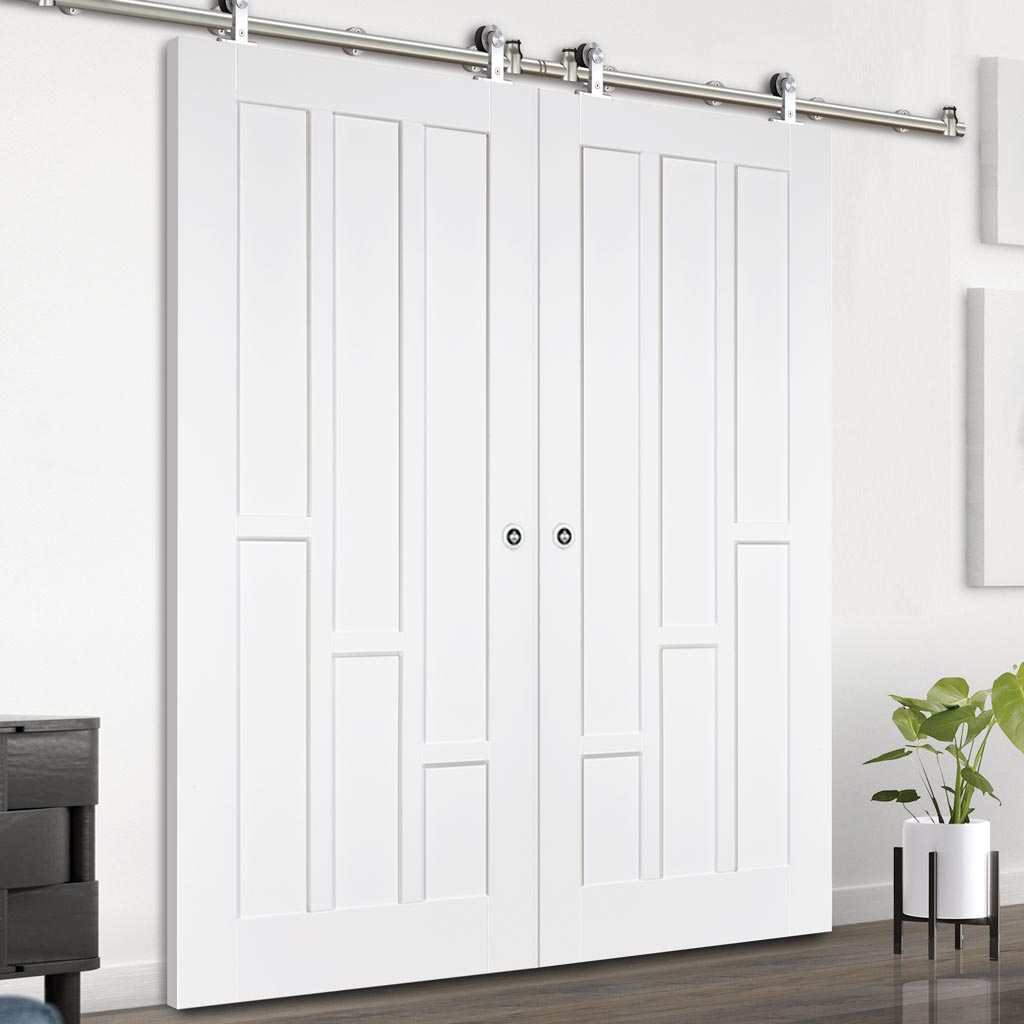

Sirius Double Tubular Top Mounted Sliding Track

Configuration

Double

Door Quantity

2

Finish

Stainless Steel

Included Items

• 2x Door
• 2x Track - Please note the style of track stops may vary depending on the size chosen.
• 2x Soft Closer
• 1x Joint Bracket
• Screws & Fixing (excluding wall fixing)

Handles are not included.

Technical Specs

Product Advice:

• We will always endeavour to supply the best size track available relative to the door size, 2x1500mm tracks are supplied for 686mm doors, 2x 1830mm tracks for 762 doors and 2x 1830mm tracks for 838 doors.
• Opening sizes; the best opening size to aim for is 10mm less in height and 20mm in width than your chosen door size so the door "covers" the full opening and more, we have listed these in the door size options but you can choose to fit them to a smaller opening width/height.
• The type of architrave used or existing can impact on visible clearances.
• The prices shown include the door and track, all prices are inclusive of vat and delivery is free to most UK Mainland postcodes, delivery may be from 2 suppliers.

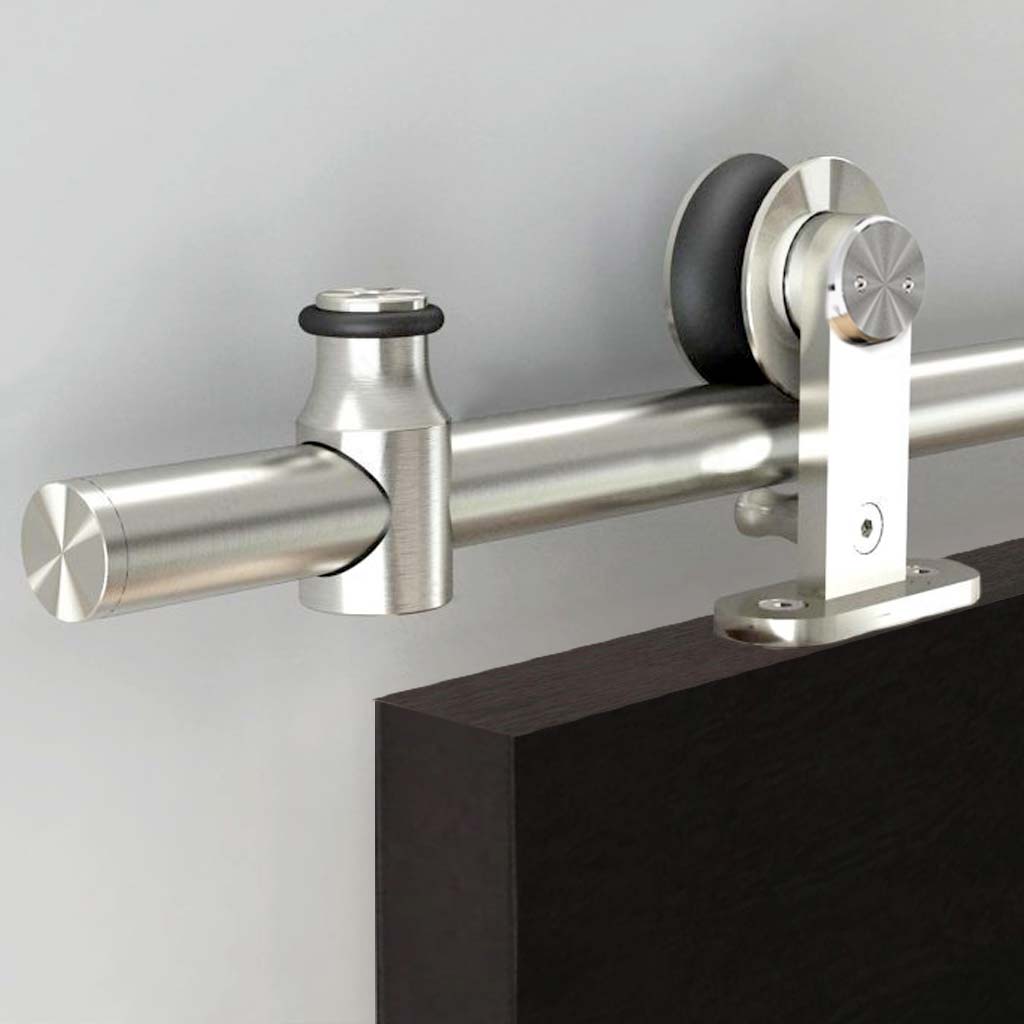

• A high-quality top mounted stainless steel sliding track system, the top-mounted track is screwed directly into the top of the door which gives the whole system a very sleek look. Maximum weight: 80 kg per door.
• There is an approx maximum of 2130mm floor to ceiling height requirement for all variations (if using a 1981mm high door) which includes some tolerances for discrepancies to wall and floor levels.
• Doors will require a groove to be routered in the bottom of it to suit the floor guide, no bottom track is required in order to allow for a clear threshold so there is no trip hazard encountered with this track.
• Be very careful when setting any handle position and the track "stop" to prevent hand injuries.

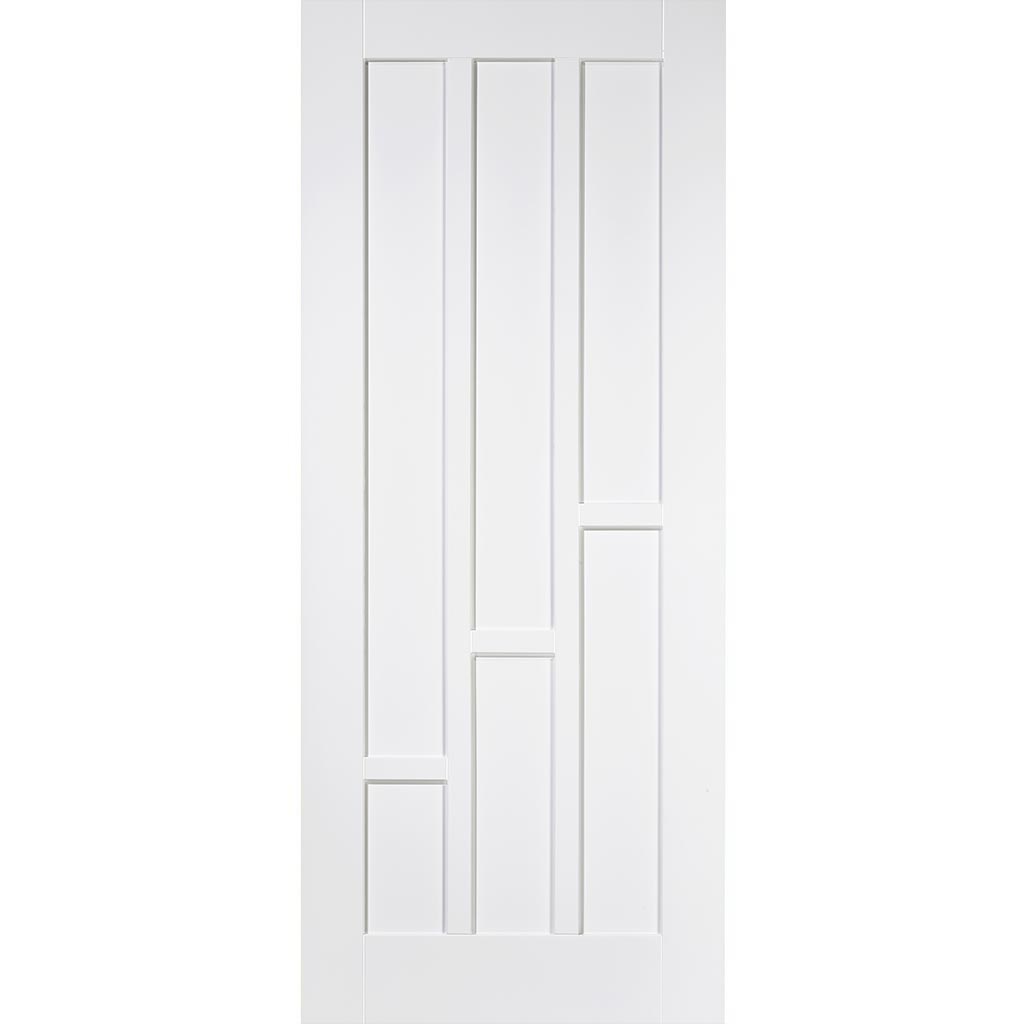

• All doors are 35mm thick and have a solid or semi-solid core covered with a quality timber veneer or surface material for painted and white versions.

Any multiple door product, EG; door pairs, sliding double doors, folding doors or double pocket doors are individual doors put together as a product visual, please note we cannot guarantee that the veneers and colour will be an exact match but every care will be taken to provide you with the closest match possible.

Additional Information

Adjustment: Doors will require a routered channel to be created in the bottom of the door to accommodate the track guide.

Assembly Tip: We all know veneers can vary in colour and grain. As soon as you're ready to begin we suggest standing your doors against a wall - look at the colour/grain and turn any or all doors 180 degrees to get the best match so that your completed installation is as good as it can be. Grain variation is natural - should you require "book marked" grain you would require the doors to be manufactured. Small variations in design features is not uncommon.

Track Fitting: For the best results and minimal clearance between door and frame/architrave please investigate fitting this wall fixing spacer directly to the wall, this will require the lintol facing/architrave being removed from the doorway OR fitting timber spacers against the frame legs/lintol BUT please check what suits your situation best.
